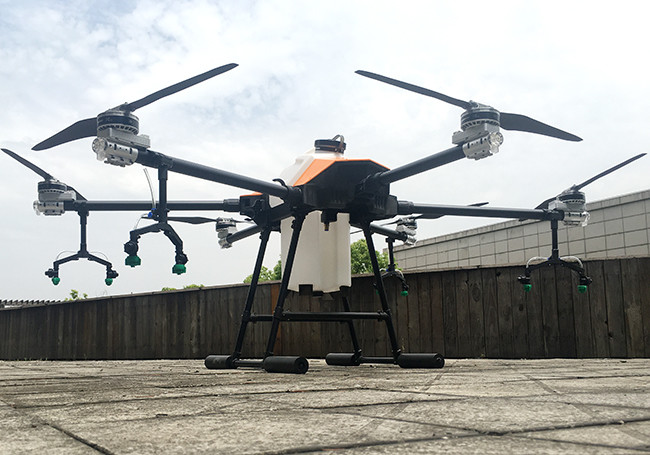

NLB-630 Agriculture Spraying Drone with 14S 28000mAh Lipo Battery
Product Description
| Model | NLB620 | NLB626 | NLB630 | |
Flight controller | 2CPU + 3 IMU | 2CPU + 3 IMU | 2CPU + 3 IMU | |
| Pesticide Tank | L | 20 | 26 | 30 |
Aircraft Frame | 6 rotors | 6 rotors | 6 rotors | |
Hovering accuracy horizontal | m | +/- 1.5 | +/- 1.5 | +/- 1.5 |
Hovering accuracy vertical | m | +/- 0.5 | +/- 0.5 | +/- 0.5 |
Material | Carbon Fiber + Aviation Aluminum | Carbon Fiber + Aviation Aluminum | Carbon Fiber + Aviation Aluminum | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Flying Time (with payload) | min | 15~20 | 15~20 | 15~20 |
| Motor | KV | 6*110 | 6*100 | 6*100 |
| Electronic Speed Control | A | 150 | 150 | 150 |
| Motor applicable temperature | ºC | -20～50 | -20～50 | -20～50 |
| Flying Speed | m/s | 0~10 | 0~10 | 0~10 |
| Take-off Capacity | kg | 54 | 63 | 63 |
| Spray Width | m | 3.5~4 | 3.5~4 | 3.5~4 |
| Flying distance | m | 5000 | 5000 | 5000 |
| Wheelbase | mm | 2018 | 2018 | 2018 |
| Working distance | m | 2000 | 2000 | 2000 |
| Spray Flow | L/min | 1.2~2 | 1.2~2 | 1.2~2 |
| Spray Efficiency | sqm/min | 1500~2400 | 1500~2400 | 1500~2400 |
| Battery / Quantity | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh | |
| Folded Size | mm | 1150*600*700 | 1150*600*700 | 1150*600*700 |
Spray System | Water pump + flow meter + water pipe + nozzle | Water pump + flow meter + water pipe + nozzle | Water pump + flow meter + water pipe + nozzle | |
| Foldable propeller | 3411 | 3612 | 3612 | |
Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | Remote control + digital transmission 5.5” screen + Android + ground workstation | Remote control + digital transmission 5.5” screen + Android + ground workstation | |
Charger | Dual channel charger | Dual channel charger | Dual channel charger | |
Work mode | Manual / Workstation | Manual / Workstation | Manual / Workstation | |
Lead time | days | 15 | 15 | 15 |
GPS Dot Device | √ | √ | √ | |
Aluminum Case | √ | √ | √ | |
Obstacle avoidance radar | Optional | Optional | Optional | |
RTK centimeter positioning | Optional | Optional | Optional | |
Terrain following radar | Optional | Optional | Optional | |
FPV Camera | Optional | Optional | Optional | |
|
|
