NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NLB-420 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month. |
| Delivery Time : | 15~25 days |

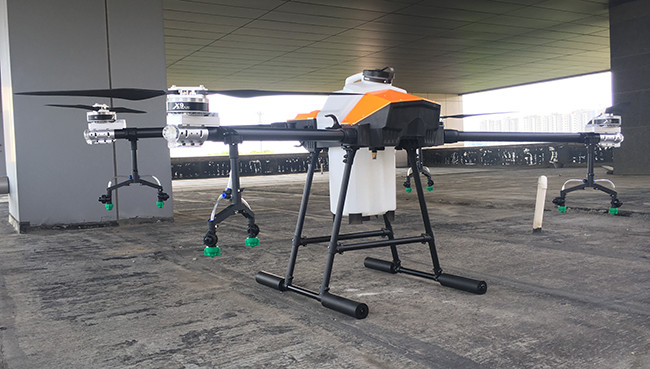

Agriculture Spraying Drone Take-off Capacity 42kg With 14S/22000m
Battery
| Model | NLB420 | NLB620 | NLB626 | NLB630 | |
| Rotor | 4 | 6 | 6 | 6 | |
Hovering accuracy | m | +/- 1.5 | |||
Hovering accuracy | m | +/- 0.5 | |||
| Wind resistance | 4～5 | ||||
| Motor | KV | 4*100 | 6*110 | 6*100 | 6*100 |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | -20～50 | |
| Foldable propeller | 3612 | 3411 | 3612 | 3612 | |
| Pesticide Tank | L | 20 | 20 | 26 | 30 |
| Electronic Speed Control | A | 150 | 150 | 150 | 150 |
| Working distance | m | 2000 | 2000 | 2000 | 2000 |
| Flying Time (with payload) | min | 15~20 | 15~20 | 15~20 | 15~20 |
| Flying distance | m | 5000 | 5000 | 5000 | 5000 |
| Flying Speed | m/s | 0~10 | 0~10 | 0~10 | 0~10 |
| Spray Width | m | 3.5~4 | 3.5~4 | 3.5~4 | 3.5~4 |
| Spray Flow | L/min | 1.2~2 | 1.2~2L | 1.2~2 | 1.2~2 |
| Take-off Capacity | kg | 42 | 54 | 63 | 63 |
| Spray Efficiency | sqm/min | 1500~2400 | 1500~2400 | 1500~2400 | 1500~2400 |
| Wheelbase | mm | 2029 | 2018 | 2018 | 2018 |
| Folded Size | mm | 1150*600*700 | 1150*600*700 | 1150*600*700 | 1150*600*700 |
| Battery / Quantity | mAh | 14S/22000 | 14S/22000 | 14S/25000 | 14S/28000 |
| FPV Camera | Optional | Optional | Optional | Optional | |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional | |
| RTK centimeter positioning | Optional | Optional | Optional | Optional | |
| Terrain following radar | Optional | Optional | Optional | Optional | |
J-RTK centimeter-level precision positioning system
J-RTK is a new generation of high-precision navigation and
positioning system. It uses real-time dynamic differential
technology to improve the three-dimensional positioning accuracy
from meters to centimeters. It makes up for the deficiencies of
traditional GPS and barometer solutions, and provides accurate and
reliable positioning solutions for high-precision applications.
J-RTK has the characteristics of high positioning accuracy and
strong anti-magnetic interference. It can also ensure reliable
operation in the environment of strong magnetic interference such
as high-voltage lines and metal buildings.
Characteristic:
1.Centimeter-level positioning accuracy, powerful multi-path effect
and interference suppression technology.
2. Dual antennas with high precision orientation and strong
anti-magnetic interference.
3. High sensitivity, stable and reliable.
Obstacle avoidance radar
Obstacle avoidance radar is mainly used to measure the relative
distance between the UAV and the obstacle in front of the flight,
so as to effectively avoid the obstacle. Obstacle avoidance radar
adopts 24GHZ radar technology, which can work all-weather under the
environment of strong light, high temperature, fog, dust, wind and
night. Its sensitivity is high, the detection distance is long, the
signal transmission is fast and stable, and it can detect a
diagonal pull of more than 1cm Electric wires, small trees with
10cm trunks, 1.7m high people and 15cm electric poles, have a good
obstacle avoidance function for high-speed running drones, and are
very suitable for plant protection drones to operate in complex
outdoor environments.
Characteristic:
1. High sensitivity
2. Far detection distance
3. Signal transmission is fast and stable
4. All day work
5. Strong environmental adaptability
|
|
