NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NLB420 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month. |
| Delivery Time : | 15~25 days |

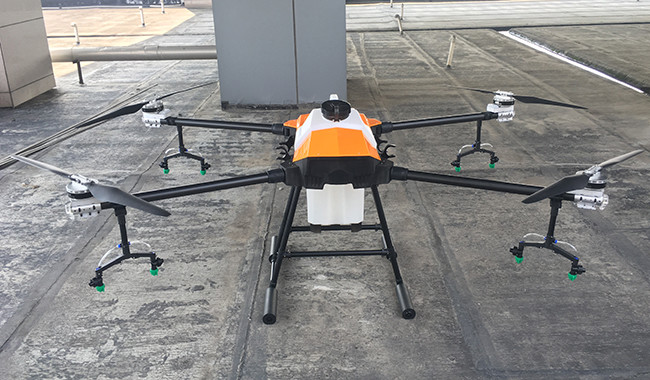

Agriculture Spraying Drone 20L Pesticide Tank for Spraying Pesticides
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
| Rotor | 4 | 6 | 6 | 6 |
Hovering accuracy horizontal | +/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
Hovering accuracy vertical | +/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 6*110KV | 6*100KV | 6*100KV |
| Electronic Speed Control | 150A | 150A | 150A | 150A |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 | -20～50 |
| Foldable propeller | 3612 | 3411 | 3612 | 3612 |
| Pesticide Tank | 20L | 20L | 26L | 30L |
| Take-off Capacity | 42kg | 54kg | 63kg | 63kg |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min | 15~20min |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Wheelbase | 2029mm | 2018mm | 2018mm | 2018mm |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh | 14S/22000mAh | 14S/25000mAh | 14S/28000mAh |
| FPV Camera | Optional | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional | Optional |
Remote controller |
1080P digital HD image transmission NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development. |
Ultra long transmission distance Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10～20km, allowing you to explore a wider space without worrying about the flying distance during flight operations. |
Industrial equipment level protection Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments. |
Highlight HD display The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions. |
Removable high-performance lithium battery The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation |
|
|
