UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank

    Buy cheap UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank from wholesalers

    Buy cheap UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank from wholesalers
    • Buy cheap UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank from wholesalers
    • Buy cheap UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank from wholesalers

    UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank

    Ask Lasest Price
    Brand Name : NLD
    Model Number : NLB420
    Certification : ISO9001 CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

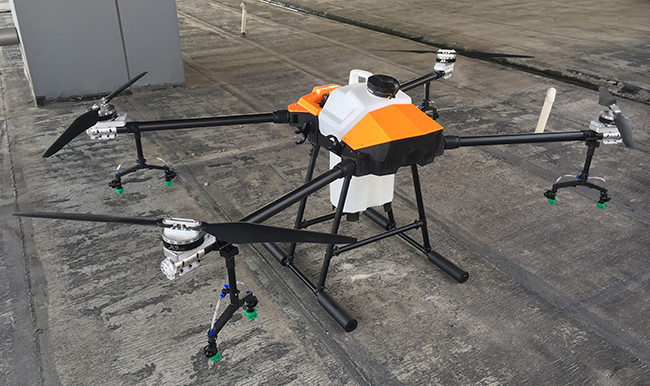

    UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank

    NLB-420 Agriculture Spraying Drone UAV For Crop Sprayer With 4 Rotors


    ModelNLB420
    Rotor4

    Hovering accuracy

    horizontal

    +/- 1.5m

    Hovering accuracy

    vertical

    +/- 0.5m
    Wind resistance4~5
    Motor4*100KV
    Electronic Speed Control150A
    Motor applicable temperature-20~50
    Foldable propeller3612
    Pesticide Tank20L
    Take-off Capacity42kg
    Flying Time (with payload)15~20min
    Flying distance5000m
    Working distance2000m
    Flying Speed0~10m/s
    Spray Width3.5~4m
    Spray Flow1.2~2L/min
    Spray Efficiency1500~2400sqm/min
    Wheelbase2029mm
    Folded Size1150*600*700mm
    Battery / Quantity14S/22000mAh
    FPV CameraOptional
    Obstacle avoidance radarOptional
    Terrain following radarOptional
    RTK centimeter positioningOptional

    Why choose NEWLANDLE sprayer drone?

    Waterproof

    The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water


    Stable

    Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;


    Efficient

    11-18 acres/hour.


    Effective

    Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.


    Intelligent

    a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;

    b). Low voltage, no signal, return automatically;

    c). Fail safe protection;

    d). Spray flow control;

    e). Intelligent automatic obstacle avoidance;

    f). Intelligent terrain following;

    g). FPV Camera;

    h). RTK centimeter positioning.


    Quality control

    Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.


    Easy to maintain and repair

    We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.


    Good service

    Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.


    UAV Crop Spraying Drone 4 Rotors 20L Pesticide Tank


    APP Ground Workstation

    1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

    2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

    3. Query job record, flight time, spray width, dose etc.
