NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NPA-630 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month. |
| Delivery Time : | 15~25 days |

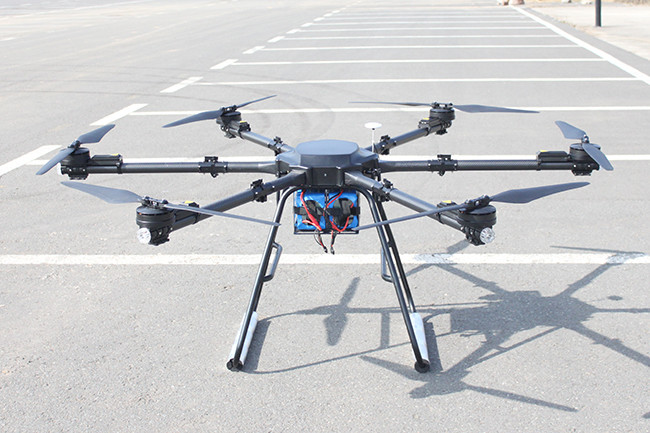

Industrial Grade Drone NPA-630 Power line Drone Flying 60 Minutes
NPA-630 for power line, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
| Max flying time | >60minutes | Working time | 30~60min with 0~12kgs payload |
| Max takeoff weight | 50kg | Payload | 0~12kg |
| HD Camera | Zoom 14x | Image transmission distance | 10km |
| Horizontal speed | 0～15m/s | Wind resistance | 6 |
Suspension components
NGC-C4K: 4K HD optical zoom gimbal
►Lightweight
Gimbal weight 286g
►High resolution, zoom
12 million pixels, up to 4K recording
14 times zoom (3.5 times optical * 4 times digital)
►High stability
Jitter Angle: ±0.01°
►One-key to center
Double-click the target, center zoom function
►GPS information record
Superimpose GPS information display and save to subtitle file
Available SDK
Sky data interface and ground station SDK is available
►Object Tracking
| General Parameter | |
| Product | NGC-C4K: 4K HD optical zoom gimbal |
| Working voltage | 12V-25V |
| Power | 6W |
| Weight | 275g |
| Size | 96*79*120mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 60℃ |
| Storage environment temp. | -20℃ ~70℃ |
| Gimbal parameter | |
| Jitter Angle | ±0.01° |
| Installation method | Detachable |
| Controllable rotation range | Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300° |
| Structure design scope Roll | Pitch/Tilt: +75º- -100°; Yaw/Pan: ±310°; roll: +90°- -50° |
| Maximum control speed | Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s |
| Camera parameter | |
| Visible 30x optical zoom lens | |
| Sensor | CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062 |
| Lens | 3.5x optical zoom lens F 3.85~13.4mm Minimum shooting distance: 1mm~3mm (near focus ~ far focus) Field of view (horizontal): 82~25° |
| Image storage format | JPEG |
| Video storage format | MP4 |
| Working method | Video, photo |
| Fog penetration | Electronic fog penetration |
| Exposure mode | Automatic exposure and manual exposure |
| Resolution | 25fps(3840*2160) 25fps(1920*1080) Maximum capture resolution: (4024*3036) |
| Minimum illumination | Color: 0.5Lux/F2.4 |
| 2D noise reduction | √ |
| 3D noise reduction | √ |
| Shutter speed | 1/3- 1/30000s |
| Exposure | Automatic support |
| OSD | √ |
| Pointing zoom | √ |
| Pointing zoom range | 1~3.5 times optical |
| One-click zoom to single image | √ |
| Support memory card type | Micro SD card 128G (maximum) |
|
|
