NSA-622 Fertilizer Spraying Drone With 6*100KV Motor And RTK Centimeter Positioning
| Model | NSA610 | NSA622 |
| Rotor | 6 | 6 |
| Take-off Capacity | 30kg | 42kg |
Hovering accuracy horizontal | +/- 1.5m | +/- 1.5m |
Hovering accuracy vertical | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 |
| Motor | 6*180KV | 6*100KV |
| Electronic Speed Control | 80A | 80A |
| Flying Speed | 0~10m/s | 0~10m/s |
| Motor applicable temperature | -20～50℃ | -20～50℃ |
| Paddle | 2388 | 3090 |
| Feed Tank | 10L | 22L |
Flight Controller | 2 CPU + 3 IMU | 2 CPU + 3 IMU |
| Flying Time (with payload) | 10~15min | 10~15min |
Charger (NFC15) | 650w 15A dual channel | 650w 15A dual channel |
| Flying distance | 5000m | 5000m |
| Folded Size | 945*848*562mm | 1102*979*600mm |
| Spreading Width | 3~6m | 3~6m |
| Spread Distance | 2~5m | 2~5m |
Material | Carbon Fiber + Aviation Aluminum | Carbon Fiber + Aviation Aluminum |
| Solid particles | 0.5~6mm | 0.5~6mm |
| Expand Size | 1992*1992*562mm | 2428*2428*600mm |
Spreading System | Motor + door opening + lack of material detection | Motor + door opening + lack of material detection |
| Wheelbase | 1407mm | 1648mm |
| Working distance | 2000m | 2000m |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs |
Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | Remote control + digital transmission 5.5” screen + Android + ground workstation |
| FPV Camera | Optional | Optional |
| Terrain following radar | Optional | Optional |
| RTK centimeter positioning | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional |
Flight Controller (RC) | YES | YES |
GPS Dot Device | YES | YES |
Aluminum Case | YES | YES |

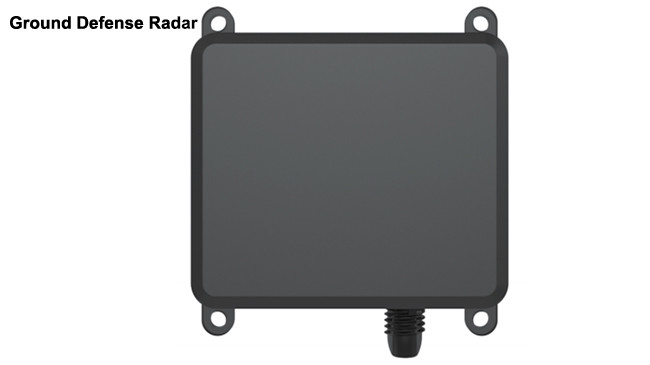

Ground Defense Radar | |
Characteristic: 1. Strong penetration, not affected by light. 2.Strong anti-interference ability and good environmental applicability. 3. Stable performance with detection range of 15m. 4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work. 6. Small in size and light in weight. | Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrain and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics. |
|
|
