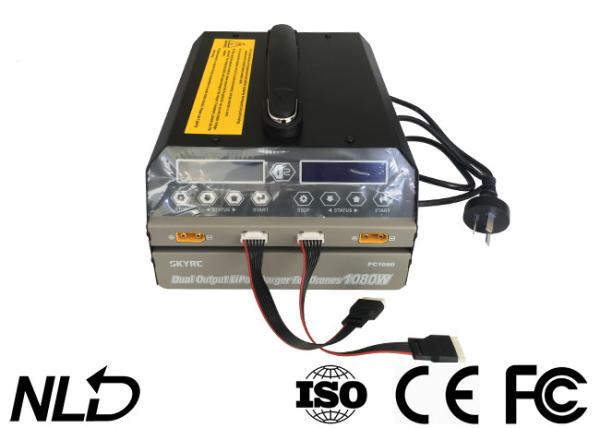

Dual Channels 6S Lipo Lithium Battery Charger Fast, Balance and Storage Output 1080W Current 2x20A

Description

This charger is capable of balance charging 2 packs of 6 cell batteries simultaneously. It is specifically designed for big battery pack. There are three working modes, fast charge, balance charge and storage .

Master and Slave mode are available, enabling the user to perform synchronous settings for numerous (synchronize 2 or more) chargers via data cables. In addition, PC1080 has short-circuit, reverse polarity, and overheat protection to ensure maximum safety.

Specifications

Features
Support charging 2 packs of 6s LiPo batteries simultaneously
Support high voltage LiPo (LiHV) battery
Memorizing last charging current
Three working modes: fast charge, balance charge & storage
Master & Slave mode available
Synchronize 2 or more chargers via data cable.
Maximum safety: short circuit protection, reverse polarity protection & over heat protection.

Adjustable charging current
2x16 LCD screen.
Real time charging/ discharging status display
Battery voltage meter
Battery internal resistance meter
Firmware upgrade via USB port

Warning and safety precautions
These warnings and safety notes are particularly important. Please follow the instructions for maximum safety. Otherwise the charger and the battery can be damaged or at worst it can catch fire.
Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
Keep the charger well away from dust, moist, rain, heat, direct sunshine and vibration.
Never drop it.
The allowable AC input voltage is AC 100-240V.
This charger and the battery should be put on a heat-resistant, non-inflammable and non-conductive surface. Never place them on a car seat, carpet or the like. Keep all the inflammable and volatile materials away from the operating area.
Make sure you know the specifications of the battery to be charged or discharged to ensure it meets the requirements of this charger. If the program is set up incorrectly, the battery and charger may be damaged. It can cause fire or explosion due to overcharging.

Never attempt to charge or discharge the following types of batteries
A battery pack which consists of different types of cells (including different manufacturers)
A battery already fully charged or just slightly discharged
Non-rechargeable batteries (Explosion hazard)
A battery requires a different charge technique
A faulty or damaged battery
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in other devices or connected to other parts.
Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process.
