High Altitude Long Endurance Unmanned Aerial Vehicle to Stringing Power Line High efficiency and Cost Performance
Specification:
| Item number NPA-805H | |||
| Motor wheelbase | 1080mm | Height | 450mm |
| Hook operation | Manual | Flight control | DJI NAZA V2 |
| Payload | 0~8kg | No-load endurance | 25-30min |
| Take-off | >14kg | Load endurance | 12---18min |
| Flying speed | 0---15m/min | Flight mode | Manual; ATT; GPS |
| Empty weight | 4kg | Battery | 16000mAh 6S |
| Maximum flight distance | 2---4km | Flight height | 0---1000m (adjustable) |
| Working Temperature | -5℃---50℃ | Diameter of traction rope | 2---4mm |
| Drone Camera | 720P | Mobile phone camera | 1300M + 500M |
| 1 | Drone ready to fly | 1 set |
| 2 | Lithium battery charger | 1 set |
| 3 | Skydroid remote control | 1 set |
| 4 | 16000mAh Tattu battery | 2 pcs |
| 5 | Remote control battery | 1 pcs |
| 6 | Mobile Phone 6.5" 5000mAh | 1 pcs |
| 7 | Battery for remote control and mobile phone | 1 pcs |
| 8 | Battery voltage capacity checker | 1 set |
| 9 | Tools | 1 set |
| 10 | Aviation aluminum case box | 1 pcs |
| 11 | Spare screws | 1 pack |
| 12 | Backup battery strap | 4 pcs |
| 13 | Spare propeller | 8 pcs |
Remote control
| Skydroid Remoet Controller | |||||||||
| Model | T10 with Phone support | Channels | 10 | ||||||
| Working voltage | 4.2V | Working Current | 100mA | ||||||
| Frequency | 2.400---2.483GHz | Modulation | New FHSS | ||||||
| Firmware | APP on Phone | Weight | 525g | ||||||
| Dimension | 160*150*50mm | Battery Capacitor | 4000mA | ||||||
| Duration | 20(Hours) | Charge Port | Micro-USB | ||||||
| Application | Helicopter, Fixed wing, Quadcopter, Car, Boat | ||||||||
| Receiver Specifications | |||||||||
| Model | RIO | Size | 50*31*12mm | ||||||
| Working Current | 100mA | Weight | About 20g | ||||||
| Working voltage | 4.5~5.5V | Channels | 10 | ||||||
| Single Axis Gimbal Camera Specifications | |||||||||
| Model | G-DCAM | Size | 71*51*47.9mm | ||||||
| Working Current | 180mA | Weight | About 67g | ||||||
Notes:
1. The configuration of flight control, remote control, battery, mobile phone, battery charger are branded accessories, better quality and more powerful. Equipped with Tatty brand battery, Skydroid brand remote control, DJI brand flight control, ISDT brand lithium battery charger, Redmi brand mobile phone. If the amount of engineering is large and the drone needs to work for more long time, you can contact us at any time in the later stage.
2. The function of drone from our company covers all the functions in the market. Features include but are not limited to: GPS positioning, headless mode, locked heading, semi-automatic return, fully automatic return, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return (like: power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt ...)
More photos

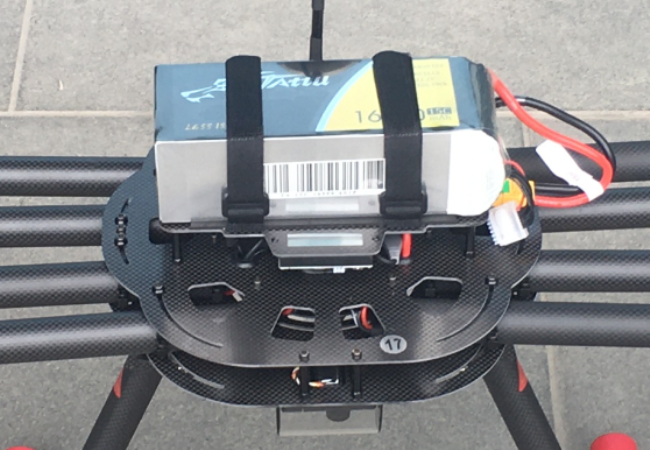

Tattu battery
DJI NAZA flight control
Take up reel
|
|
