NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NPA-805H-2 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |
Powerline Drone Power Company Using Drones to String Pilot Ropes
with Take-up Reel DJI Flight Control Tattu Batteries
Specification:
| Model no. | NPA-805H | ||
| Axle distance | 1080mm | Height | 450mm |
| Fail-Safe | Yes | GPS | Yes |
| Maximum payload | 8kg | No-load endurance | 25~30min |
| Maximum take-off weight | 14kg | Load endurance | 12~18min |
| Camera | 720P Video Photo | Gimbal | Single axis gimbal |
| Flying speed | 0~15m/min | Flight mode | Manual control; ATT; GPS |
| Empty weight | 4kg | Battery | 16000mAh 6S |
| Maximum flight distance | 2~4km | Flight height | 0~1000m (adjustable) |
| Working Temperature | -5℃~50℃ | Diameter of traction rope | 2~4mm |
| Functions: GPS positioning, headless mode, full-auto return, semi-auto return, runaway protection, heading lock, low-voltage protection, battery power return, national exclusive high beam function, OSD flight data real-time return, etc. | |||
| 1 | Drone DJI NAZA V2 flight control with GPS system | 1 set |
| 2 | Battery charger | 1 set |
| 3 | Professional remote control T10 | 1 set |
| 4 | 16000mAh Tattu battery | 2 pcs |
| 5 | Remote control battery | 1 pcs |
| 6 | Battery voltage capacity checker | 1 set |
| 7 | Tool kits | 1 set |
| 8 | Aluminum case | 1 pcs |
| 9 | Spare screws | 1 set |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propeller | 8 pcs |
| 12 | Mobile phone 6.5" 5000mAh | 1 set |
Remote control
| Remote Controller data | |||||||||
| Model no. | T10 Skydroid | Channels | 10 | ||||||
| Working voltage | 4.2V | Working Current | 100mA | ||||||
| Frequency | 2.400-2.483GHz | Modulation | New FHSS | ||||||
| Firmware | APP online | Weight | 525g | ||||||
| Dimension | 160x150x50mm | Battery Capacitor | 4000mA | ||||||
| Duration | 20(Hours) | Charge Port | Micro-USB | ||||||
| Application | Multo-rotors, Fixed wing etc. | ||||||||
| Receiver Specifications | |||||||||
| Model no. | RIO | Size | 50*31*12mm | ||||||
| Working Current | 100mA | Weight | 20g | ||||||
| Working voltage | 4.5~5.5V | Channels | 10 | ||||||
| Camera Specifications | |||||||||
| Model no. | G-DCAM | Size | 71*51*47.9mm | ||||||
| Working Current | 180mA | Weight | 67g | ||||||
| Voltage | 5V | Working temperature | -10~50ºC | ||||||
Notes:
1. Above configuration flight control, remote control, charger are brand parts, better quality and more powerful. Equipped with Tattu brand battery, better quality. If the amount of engineering is large and the drone needs to work for a long time, you can contact us at any time in the later stage.
2. The function of our drone covers all the functions in the market. Features include but are not limited to: GPS positioning, locked heading, low voltage protection alarm, semi-automatic return, fully automatic return, headless mode,out of control return, on-board electrical display, camera OSD return (power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt etc.)
More photos

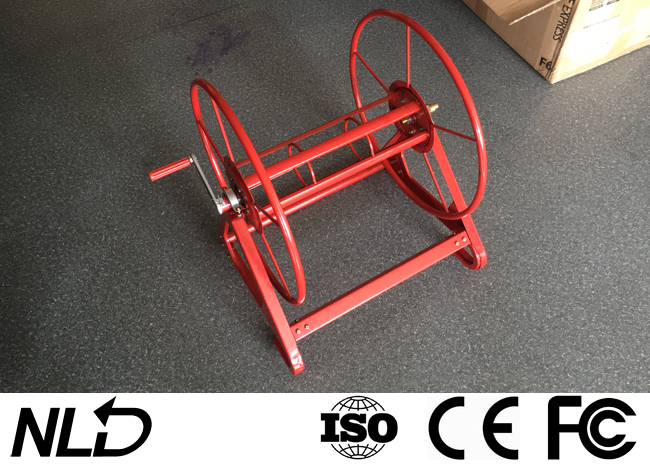

Take-up Reel
|
|
