NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NPA-805H-6 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |

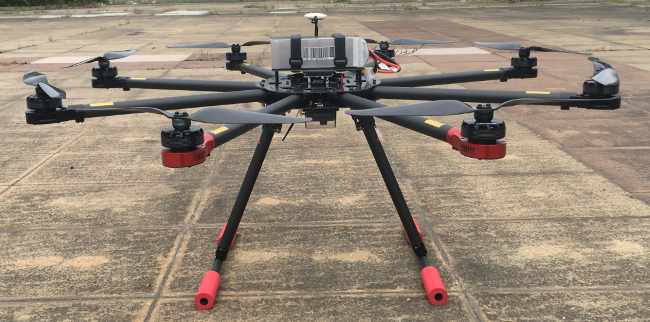

Unmanned Aerial Vehicles for Transmission Line Cable Construction Mission with Manual Operation Hook and Take-up Reel
Specification:
| NPA-805H | |||
| Flight control | DJI NAZA system | Flight mode | GPS; ATT; Manual |
| Fail-Safe system | DJI NAZA system | GPS | DJI GPS |
| Motor wheelbase | 1080mm | Height | 450mm |
| Maximum payload weight | 8kg | No load flying time | 25-30min |
| Maximum take-off weight | 14kg | Load flying time | 12-18min |
| Max flying speed | 15m/min | Camera | Single axis gimbal |
| Empty aircraft weight | 4kg | Power Battery | 16000mAh 6S |
| Maximum flight distance | 2~4km | Flight height | 0-1000m (adjustable) |
| Working Temperature | -5℃-50℃ | Pilot rope | 2-4mm |
| Functions: | Full-auto return | semi-auto return | GPS positioning |
| runaway protection | headless mode | heading lock | battery power backhaul |
| low-voltage protection alarm | national exclusive high beam function | OSD flight data real-time backhaul | |
| 1 | Drone with DJI NAZA flight control | 1 set |
| 2 | High power battery charger | 1 set |
| 3 | Professional remote control | 1 set |
| 4 | 16000mAh Tattu lithium battery | 2 pcs |
| 5 | T10 Remote control battery | 1 pcs |
| 6 | Battery voltage capacity checker | 1 set |
| 7 | Tool kits | 1 set |
| 8 | Aviation aluminum case | 1 pcs |
| 9 | Spare screws | 1 pack |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propellers | 8 pcs |
| 12 | Mobile phone 6.5" 5000mAh | 1pcs |
Remote control
| Controller Specifications | |||||||||
| Model | Skydroid T10 | Channels | 10 | ||||||
| Frequency | 2.400-2.483GHz | Modulation | New FHSS | ||||||
| Duration | 100(Hours) | Charge Port | Micro-USB | ||||||
| Receiver Specifications | |||||||||
| Model | RIO | Size | 50*31*12mm | ||||||
| Working Current | 100mA | Weight | 20g | ||||||
Digital Camera
| Interface Type | Network interface |
| Control display mode | Windows PC; Android, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 50℃ |
| Gimbal parameter | |
| Gimbal | Single axis Pitch: +10°- -90° |
| Camera parameter | |
| Resolution | 720P |
| Working method | Video, photo |
| Support memory card type | Micro SD card 128G (maximum) |
Namual Operation hook
The hook can be manual operated, it will facilitate the work of hanging and releasing, it'll be automatically released when out of control.
Notes:
Misuse of this product may result in injury, damage or loss of property. Read the manual carefully before using this product. This item is not a toy. This item is intended for use by professional UAV operators and installers only. Do not use this product if you lack the knowledge and expertise to install and maintain UAV radio equipment. DO NOT use unapproved or unofcial components with this system. Operators must strictly follow the operation guides set forth in this manual. We do not accept any liability for the use or misuse of this product.
More photos
Take-up Reel
|
|
