NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NPA-805H-12 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |
Long Endurance Heavy Payload Electric Powered Drone with Single Axle gimbal FPV HD Camera 6.5" Mobile Phone as Display
Specification:
| Item number: NPA-805H | |||
| No-load endurance | 25-30min | Load endurance | 12-18min |
| Maximum payload | 8kgs | Maximum take-off weight | 14kgs |
| Flying speed | 0~15m/min | Flight mode | Manual; ATT; GPS |
| Axle distance/Height | 1080mm/450mm | Camera | Single axis gimbal 720P |
| Fail-Safe | with | GPS | with |
| Empty weight | 4kg | Battery | 16000mAh 6S |
| Maximum flight distance | 2~4km | Flight height | 0~1000m (adjustable) |
| Working Temperature | -5℃~50℃ | Diameter of traction rope | 2~4mm (suggestion) |
| Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, OSD flight data real-time backhaul, etc. | |||
| 1 | Drone DJI NAZA flight control | 1 set |
| 2 | High power charger | 1 set |
| 3 | Skydroid remote control with charger | 1 set |
| 4 | Tatty 16000mAh battery | 2 pcs |
| 5 | Redmi mobile phone 6.5" display | 1 set |
| 6 | Battery voltage capacity checker | 1 set |
| 7 | Tool kits | 1 set |
| 8 | Aviation aluminum box | 1 pcs |
| 9 | Spare screws | 1 pack |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propeller | 8 pcs |
Remote control
| Skydroid Remote Controller information | |||||||||
| Mdel | T10 | Channels | 10 | ||||||
| Working voltage | 4.2V | Working Current | 100mA | ||||||
| Frequency | 2.400~2.483GHz | Modulation | New FHSS | ||||||
| Firmware | APP online | Weight | 525g | ||||||
| Dimension | 160*150*50mm | Battery | 4000mA | ||||||
| Duration | 20(Hours) | Charge Port | Micro-USB | ||||||
| Application | Multi-rotors, Fixed wing, Quadcopter, Car, Boat etc. | ||||||||
| Skydroid Receiver information | |||||||||
| Model | RIO | Size | 50*31*12mm | ||||||
| Working Current | 100mA | Weight | 20g | ||||||
| Working voltage | 5V | Channels | 10 | ||||||
| Singl axis gimbal Camera information | |||||||||
| Model | G-DCAM | Size | 71*51*47.9mm | ||||||
| Resolution | 720P | Single axis | Pitch +10~90° | ||||||
| Working Current | 180mA | Weight | 67g | ||||||
Notes:
1. The above configuration remote control, battery, charger, flight control are branded accessories, better quality and more powerful. Equipped with Tattu brand battery, better quality, Skydroid brand remote control, ISDT brand 200W dual channel lithium battery charger. If the amount of engineering is large and the drone needs to work for a long time, you can contact us at any time in the later stage.
2. These requirements require additional costs: date return like power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt.
More photos
Tattu battery
DJI NAZA flight control

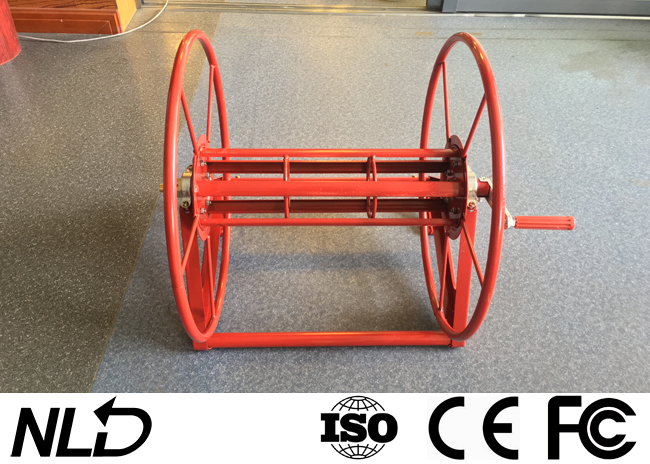

Take-up reel
|
|
