22L Solid Particles Fertilizer Spreading Agriculture Drone 6 Rotors
Obstacle Avoidance Terrain Following Radar Optional
Quick details:
Aircraft Frame: 6 rotors
Material: Carbon aluminum PE
Flight controller: 2 CPU + 3 IMU
Capacity: 22L
Motor: 6*100KV
ESC: 6*80A
Ready to fly accessories form:
| No. | Description | NSA410 | NSA422 | NSA610 | NSA622 |
| 1 | Aircraft Frame | 4 rotors | 4 rotors | 6 rotors | 6 rotors |
| 2 | Flight Controller (RC) | √ | √ | √ | √ |
| 3 | GPS Dot Device | √ | √ | √ | √ |
| 4 | Motor | 4*100KV | 4*110KV | 6*180KV | 6*100KV |
| 5 | Electronic Speed Control (ESC) | 4*80A | 4*120A | 6*80A | 6*80A |
| 6 | Foldable propeller | 4*3090 | 4*3411 | 6*2388 | 6*3090 |
| 7 | Pesticide Tank | 10L | 22L | 10L | 22L |
| 8 | Spreading System | Motor + door opening + lack of material detection | |||
| 9 | Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |||
| 10 | Charger (NFC15) | 650w 15A dual channel | |||
| 11 | Battery | 2*22000mAh | 2*22000mAh | 2*22000mAh | 2*22000mAh |
| 12 | Aluminum Case | √ | √ | √ | √ |
Specification:
| Model | NSA410 | NSA422 | NSA610 | NSA622 |
| FPV Camera | Optional | |||
| Obstacle avoidance radar | Optional | |||
| Terrain following radar | Optional | |||
| RTK centimeter positioning | Optional | |||
| Rotor | 4 | 4 | 6 | 6 |
Hovering accuracy | +/- 1.5meters | |||
Hovering accuracy | +/- 0.5meters | |||
| Wind resistance | 4～5 | |||
| Motor | 4*110KV | 6*100KV | ||
| Electronic Speed Control | 120A | 80A | ||
| Motor applicable temperature | -20～50℃ | -20～50℃ | ||
| Paddle | 3411 | 3090 | ||
| Spreading Width | 3~6meters | 3~6meters | ||
| Spread Distance | 2~5meters | 2~5meters | ||
| Solid particles | 0.5~6mm | 0.5~6mm | ||
| Expand Size | 1848*1848*628mm | 2428*2428*600mm | ||
| Wheelbase | 1416mm | 1648mm | ||
| Folded Size | 648*671*628mm | 1102*979*600mm | ||
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs | ||
Packing & Delivery:
Package: Aluminum case
Measurement: 100x100x70cm (approximately);
Gross weight: 50kgs (approximately);

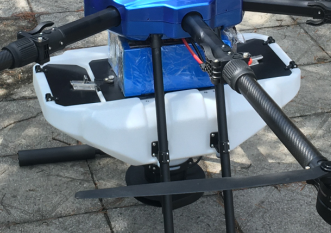

Spreading Tank:
The Spreading tank can adjust the size of the outlet valve & speed
of the spreading turntable, to control the discharge volume and the
discharge speed. and it is equipped with a stirring device to
prevent the discharge from being blocked, improving the accuracy
and reliability of the spreading operation.
APP Ground Workstaton:
1. APP with android system and ground workstation;
2. It can control and adjust the flying paramenter;
3. Provide Google map an FPV video;
4. Support Obstacle avoidance radar, terrain following radar and
RTK device as optional;
5. Job record, flight time, spread area etc.
More pictures:
|
|
