Gasoline Battery Hybrid Power Plant Protection Drone for Agriculture Spraying 7kw Water Cooling Engine System
Comparison of advantages
| Gasoline Battery Hybrid Power | Pure lithium battery system | |
| Efficiency | The large load means that each aircraft can work on a larger area, reduce the waste of ineffective travel, and refuel and leave to meet the needs of high-intensity continuous dispatch | The load capacity is small, frequent rises and falls, and the battery pack needs to be continuously disassembled and assembled. However, the charging time of the battery pack is too long, and a large number of battery packs need to be rotated. The continuous operation pressure is high and the efficiency is low. |
| Cost | High operating efficiency means that the average operating labor cost is low, and the cost can be reduced. | Field work requires large generators, as well as gasoline. The number of battery recharges has a life limit, and the battery can only be re-purchased and replaced at the expiration date, and the cost is high. |
Performance parameter
| NLA-GB16 | NLA-GB20 | NLA-GB50 | NLA-GB65 | |
| Rotor | 4 | 6 | 6 | 6 |
| Pesticide tank capacity | 16L | 20L | 50L | 65L |
| Max take-off weight | 45kgs | 57kgs | 113kgs | 160kgs |
| Endurance | 15~120minutes | |||
| Power system | 1set 7kw | 1set 7kw | 2sets 7kw | 3sets 7kw |
| Fuel oil | 92 # gasoline+oil blends(40:1) | |||
| Fuel consumption | 6L/h | 6L/h | 12L/h | 18L/h |
| Expanded size | 1400x1400x700mm | 1850x1850x700mm | 2600x2240x1000mm | 3100x2700x1000mm |
| Folded size | 900x800x700mm | 1150x880x700mm | 1150x1300x1000mm | 1700x1400x1000mm |
| Work efficiency | 16.5acre/h | 24.7acre/h | 49.4acre/h | 65.9acre/h |

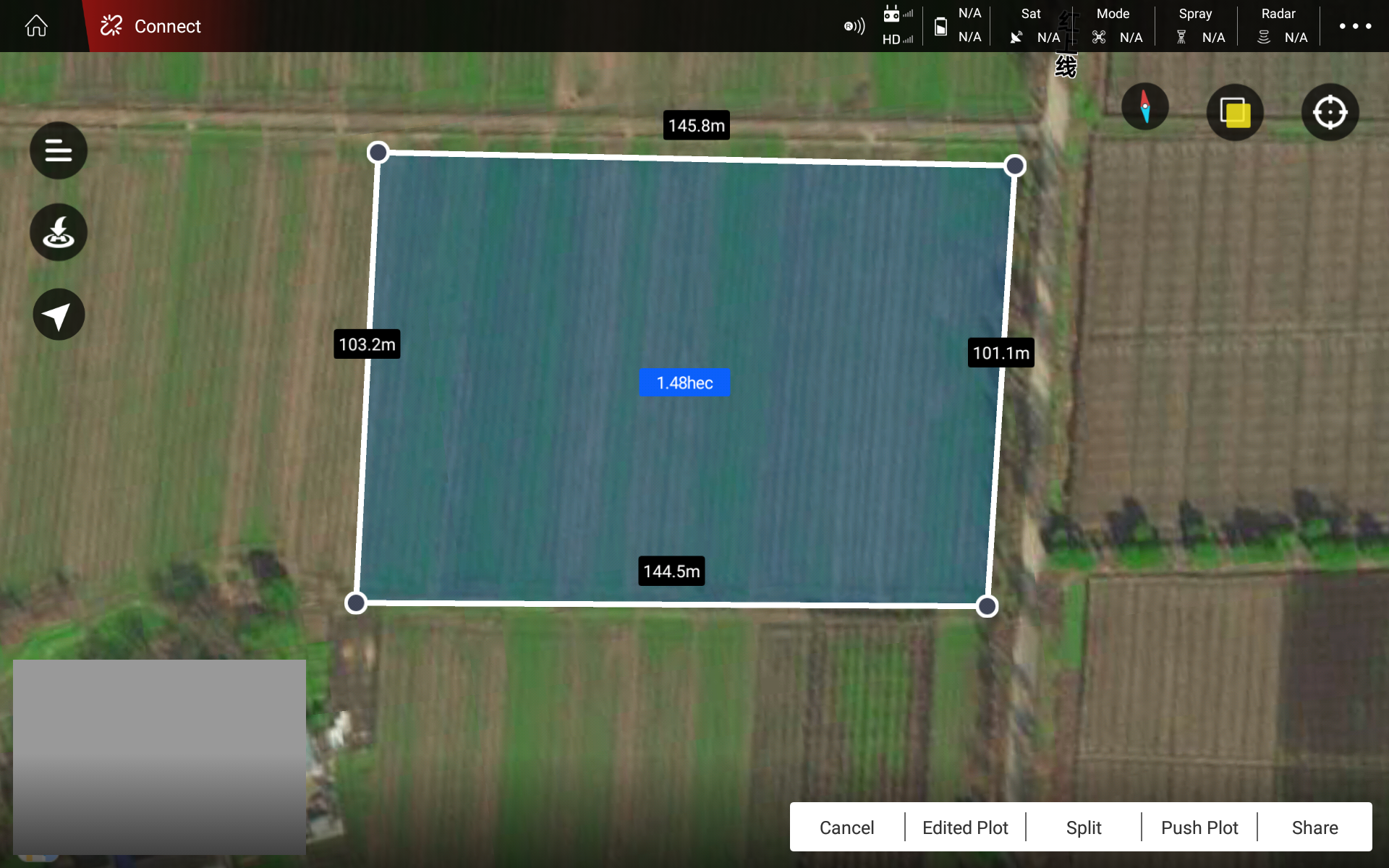

APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
Gasoline Battery Hybrid Power
Output voltage | DC51.8V (14S LI-OH battery) |
Maximum output power | 7KW |
Battery | 14S LI-ION 5500MAH 30C |
Charging current | 30A |
Engine | Two cylinder two stroke 130CC engine |
Engine speed | 4000RMP~7500RPM |
Fuel specifications | 92 # gasoline+oil blends(40:1) |
Fuel consumption | 7L/H(7KW Run continuously) |
Size | 336*280*240MM |
Weight | 10KG(Including host, control circuit and water tank, excluding oil tank) |
Start launch | Built-in electric |
Control way | Intelligent frequency conversion |
Working temperature | -10℃~50℃ |
|
|
