NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NPA-630 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Supply Ability : | 100sets/month |
| Delivery Time : | 15days |

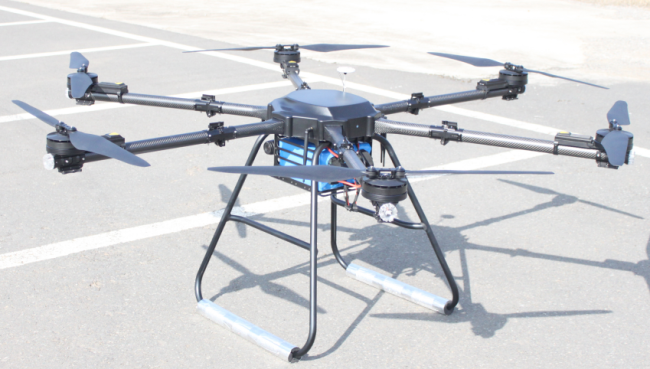

6 Rotors Drone Industrial Grade Power line Stringing Inspection Flying Time 60 Minutes
Quick details:
1. Max flying time: 60 minutes;
2. Working time: 30~60minutes;
3. Camera: HD Zoom 14x;
4. Image transmission distance: 10km
5. Parabolic hook: for throwing
6. Battery: 12S 30000mAh 2 pcs
Configuration:
| Drone Frame | 6-rotor drone frame | 1 |
| Flight control | Three-axis sensor / Three-axis accelerometer / Three-axis gyroscope / Three-axis magnetometer | 1 |
| Remote controller | Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input | 1 |
| Li-battery | Super Lip Battery 12S 30000mAh | 2 |
| Propeller | each set 6pcs | 1 |
| Charger | Dual channel smart charger | 1 |
| Tools | 1 | |
| Aluminum box | 1 |
Specification:
| Max flying time | >60minutes | Working time | 30~60min with 0~12kgs payload |
| Max takeoff weight | 50kg | Payload | 0~12kg |
| HD Camera | Zoom 14x | Image transmission distance | 10km |
| Horizontal speed | 0～15m/s | Wind resistance | 6 |
Suspension components
NGC-C4K: 4K HD optical zoom gimbal
Lightweight
Gimbal weight 286g
High resolution, zoom
12 million pixels, up to 4K recording
14 times zoom (3.5 times optical * 4 times digital)
High stability
Jitter Angle: ±0.01°
One-key to center
Double-click the target, center zoom function
GPS information record
Superimpose GPS information display and save to subtitle fileAvailable SDK
Sky data interface and ground station SDK is available
Object Tracking
| General Parameter | |
| Product | NGC-C4K: 4K HD optical zoom gimbal |
| Working voltage | 12V-25V |
| Power | 6W |
| Weight | 275g |
| Size | 96*79*120mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 60℃ |
| Storage environment temp. | -20℃ ~70℃ |
| Gimbal parameter | |
| Jitter Angle | ±0.01° |
| Installation method | Detachable |
| Controllable rotation range | Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300° |
| Structure design scope Roll | Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50° |
| Maximum control speed | Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s |
| Camera parameter | |
| Visible 30x lens | |
| Sensor | CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062 |
| Lens | 3.5x optical zoom lens F 3.85~13.4mm Minimum shooting distance: 1mm~3mm (near focus ~ far focus) Field of view (horizontal): 82~25° |
| Image storage format | JPEG |
| Video storage format | MP4 |
| Working method | Video, photo |
| Fog penetration | Electronic fog penetration |
| Exposure mode | Automatic exposure and manual exposure |
| Resolution | 25fps(3840*2160) 25fps(1920*1080) Maximum capture resolution: (4024*3036) |
| Minimum illumination | Color: 0.5Lux/F2.4 |
| 2D noise reduction | √ |
| 3D noise reduction | √ |
| Shutter speed | 1/3- 1/30000s |
| Exposure | Automatic support |
| OSD | √ |
| Pointing zoom | √ |
| Pointing zoom range | 1~3.5 times optical |
| One-click zoom to single image | √ |
| Support memory card type | Micro SD card 128G (maximum) |
|
|
