NSA-410 Agriculture Drone Fertilizer 4 Rotors Agricultural Fertilizer UAV 10L Feed Tank

Quick start

1. Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;

2. Spreading Width: 3~6m;

3. The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and discharge speed;
4. Intelligent
a). Low voltage, no signal, return automatically;

b). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;

c). Fail safe protection;

d). Spray flow control;

e). Intelligent automatic obstacle avoidance;

f). Intelligent terrain following;

g). FPV Camera;

h). RTK centimeter positioning.

5. Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
6. Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
7. Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.

Ready To Fly accessories form

Product Description

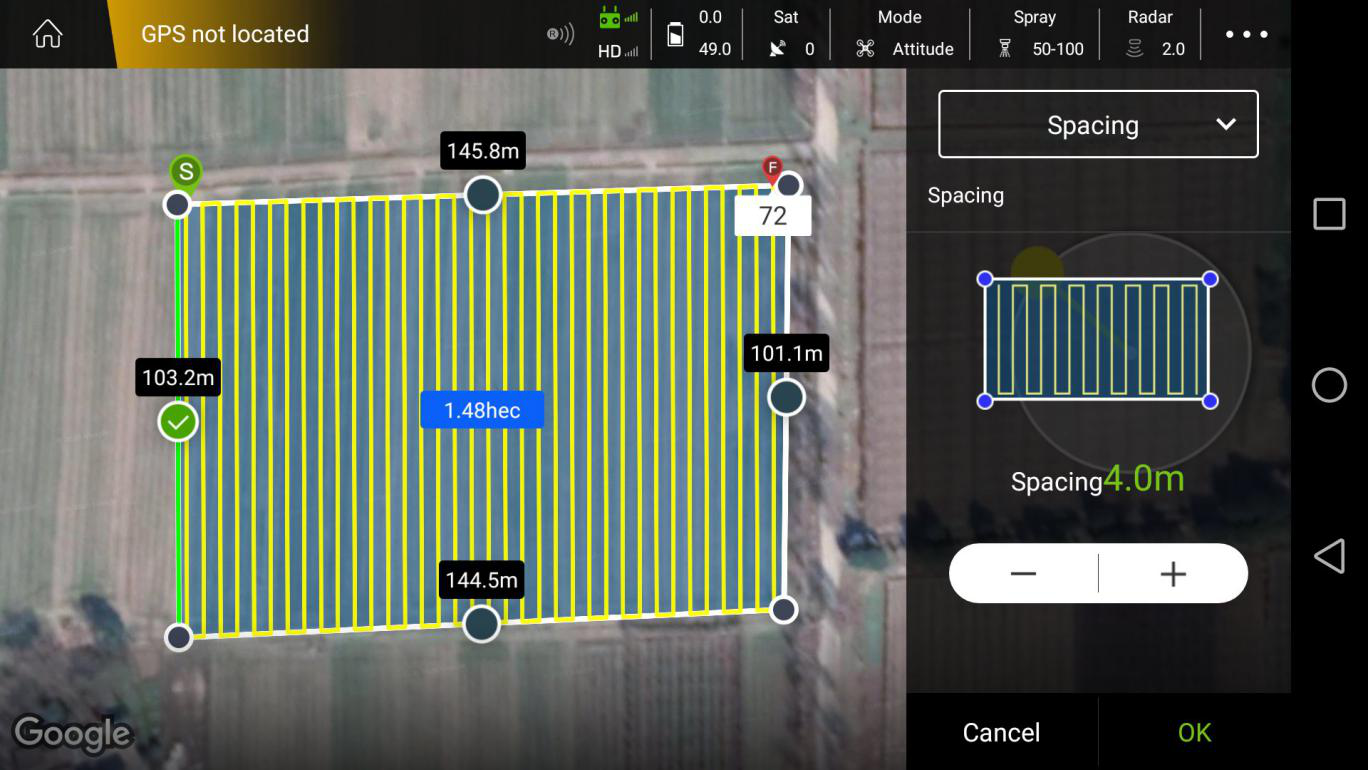

APP Ground Workstation

1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.

2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.

3. Query job record, flight time, spray width, dose etc.

Spreading Tank

The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and the discharge speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.

Chassis of Drone

Fully waterproof fuselage

The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright blue coating, with beautiful shape and eye-catching color.

New folding part

The unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.

Integrated power system

The PMSM algorithm based on FOC is optimized to create a perfect dynamic system

Super protection, easy to deal with the harsh environment of plant protection

Intelligent multiple redundancy protection, running data real-time output

Highlight the LED display

High lift, high efficiency propeller

Sturdy, reliable and impact resistant

Modular design, easy maintenance

Support system upgrade

Ground defense radar

Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrain and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

Characteristic:

1. Strong penetration, not affected by light.

2.Strong anti-interference ability and good environmental applicability.

3. Stable performance with detection range of 15m.

4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.

6. Small in size and light in weight.

Obstacle avoidance radar

Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.

Characteristic:

1. High sensitivity

2. Far detection distance

3. Signal transmission is fast and stable

4. All day work

5. Strong environmental adaptability

J-RTK is a new generation of high-precision navigation and positioning system. It uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters. It makes up for the deficiencies of traditional GPS and barometer solutions, and provides accurate and reliable positioning solutions for high-precision applications. J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference. It can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.

Characteristic:

1.Centimeter-level positioning accuracy, powerful multi-path effect and interference suppression technology.

2. Dual antennas with high precision orientation and strong anti-magnetic interference.

3. High sensitivity, stable and reliable.
