Remote Controller Max 4km Rang 16 Idependent Digital Output Channels Date Image Transmission Three in One
Quick details:
Control Range: Max 4km;
Screen type: 2.8" high brightness colorful LCD screen
Wireless type & function: 2.4G ISM / Bluetooth
Charger: 5V 2A
Specification:
VD32 is a professional, intelligent and universal radio transmitting system integrated with 2.4G Hz datalink and video-link, applied with advaned SHTT digital frequency hopping technology. It supports maximum 4 km control range and 16 independent digital output channels, perfectly comatible with major commercial flight controllers on market. It also supports parameter adjustment through the built-in touchscreen, easy and convenient.
| Channels | 16 Channels |
| Applicable Model | Planes / Helicopters / Gliders / Quadcopters / Multi-rotors / Vehicles / Boats / Robots |
Compatible FC | Open Source Flight Controllers: PIX/APM, etc. |
| Model Data Memory | 64 sets(extensible) |
| Language Display | Chinese / English |
| Joystick Resolution | 4096 grades |
| Frequency Band | 2.400 MHz - 2.483 MHz |
| Transmitting Power | 100 mW (20 dBm) E.I.R.P |
RF Spreading Technology | FHSS |
| Receiving Sensibility | -101 dBm |
| Control Range | 4 km / 2.5 miles (unobstructed, free of interference) 2 km / 1.2 miles (ground to ground) |
| PC Software | SIYI Assistant v1.2.0 |
| Battery Type & Power | Chargeable Built-in 3.7V 8000mAh Li-Po 1S battery 29.6 Wh |
| Battery Life | 8 Hours |
Working Current | Transmitter: 200 mA, Receiver: 80 mA, Idle: 60 mA |
| Charging Port | Micro-USB Port |
| Screen Type | 2.8-Inch High Brightness Colorful LCD Screen Display Resolution: 240x320 |
| Charging Port | Micro-USB Port |
Wireless Type & Function | 2.4G ISM (radiolink/datalink/videolink) Bluetooth (datalink communication) |
| Packing Size | 245X190X170 mm |
| Packing Weight | 1350 g |
| Mobile APP & Function | SIYI TX SIYI FPV |

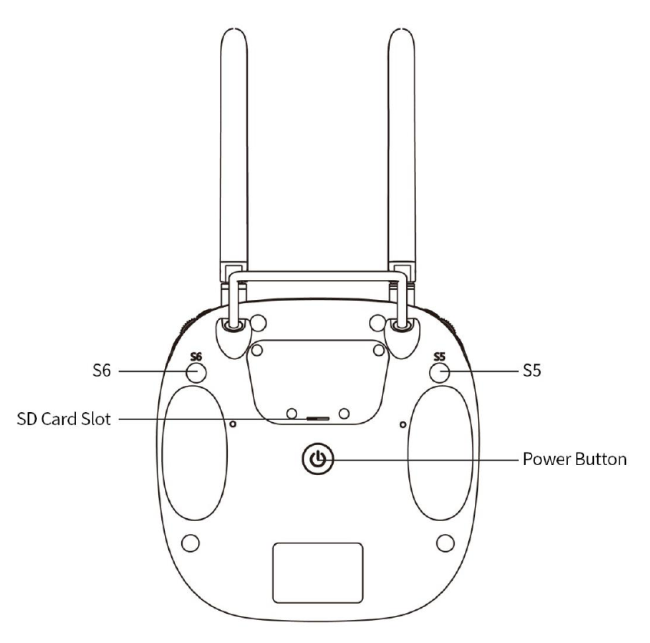

Ground Station (Transmitter)
| Battery Type & Power | Chargeable Built-in 3.7V 8000mAh Li-Po 1S battery 29.6 Wh |
| Battery Life | 8 Hours |
| Battery Working Temperature | 0 ~ 55 (℃) |
| Charging Port Type | Micro-USB; 5V/2A |
Charging Time | 5 Hours |
| Dimensions | 184.5X180X114 mm |
| Net Weight | 780 g |
Sky Station (Receiver)
| Signal Output | 14 channels of SBUS, 5 channels of PWM |
| Datalink Ports (to FC) | UART, CAN (optional) |
| Antenna Gain | 5 dBi |
| Working Voltage | 15 – 50V |
| Telemetry Voltage | 15 – 50V |
| Operating Temperature | -10 to 55 (℃) |
| Dimensions | 59 x 59 x 16 mm (without antenna) |
| Net Weight | 50g (without antenna) |
|
|
