NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NTA-CFLY-6 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |

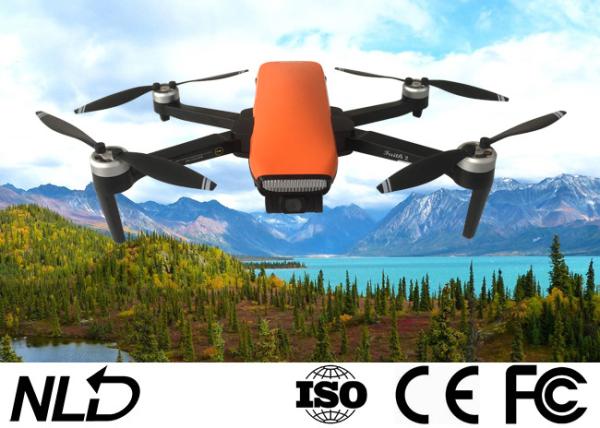

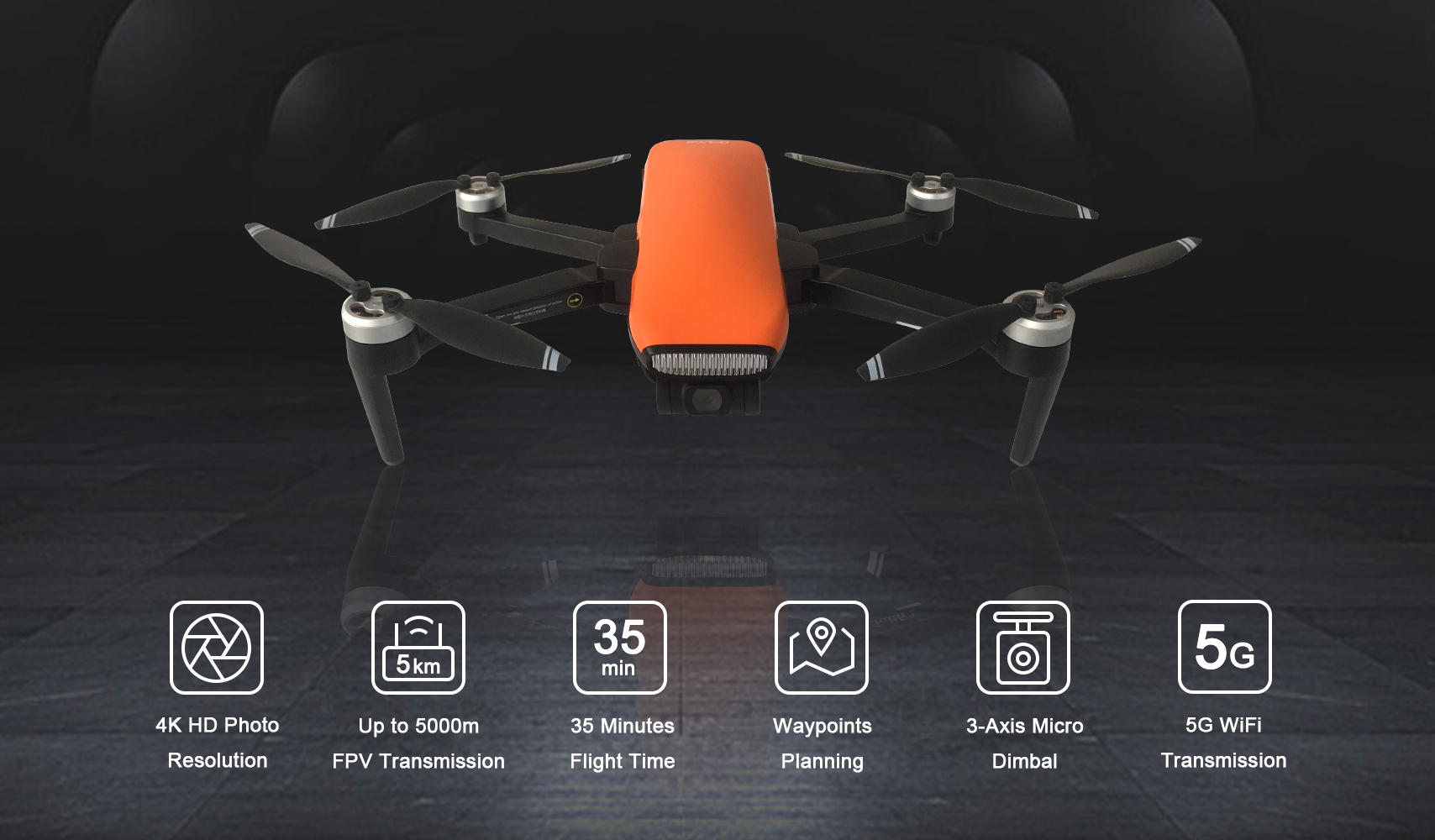

UAV with 4K Camera Ambarella A12 Sony CMOS Image Size 5120x3840
JPEG Video 3840x2160 60Mbps MP4
Avoid controlling alone
The control skills of remote control aircraft are difficult to
learn in the early stage. It is necessary to avoid flying alone as
much as possible, and ttie guidance of experienced persons is
required.
Use this product properly
Please use original parts for modification or repair to ensure
flight safety. Please operate and use within the scope allowed by
the product function,And must not be used for illegal purposes
other than security laws.
Specification
1. UAV Drone
| Drone Size | 170x108x74mm (Flod) / 180x255x74mm (Unfold) |
| Weight with battery and propeller | about 515g |
| Wheelbase distance | 280mm |
| Maxinum Descent Speed (m/s) | Clam: 1.5m/s; Normal: 1.5m/s; Sport: 2m/s |
| Maxinum Ascent Speed (m/s) | Clam: 2m/s; Normal: 2m/s; Sport: 5m/s |
| Maxinum Flight Speed (m/s) | Clam: 5m/s; Normal: 10m/s; Sport: 19m/s |
| Altitude | Max 5Km |
| Flying Time | Max 35minutes |
| Satellite Positioning Systems | GPS and GLONASS |
| Hover Accuracy Range | Vertical: ±0.5m±0.2m (optical flow, ultrasonic altitude system) |
| Maximum Flight Height | Maximum 500m (Could change setting on app) |
| Operating Temperature | 0℃~40℃ |
2. Optical flow system
| Operating Environment | Surface clear pattern & adequate lighting |
| Velocity Range | ≤1.5m/s at 6.6 ft (hight 2m) above the ground |
| Altitude Range | 0.5~5m |
3. Ultrasonic altitude system
| Velocity Range | Fly speed ≤3m/s |
| Altitude Range | 0.2-4.5m |
| Operating | Except for surface of water / ground / absorbing material (like thick carpet) |
4. Gimbal Three axis
| Stabilization | Pitch: +30/-120°; Roll: ±35°; Yaw: ±30° |
| Controllable | Pitch: -90°-0° |
5. SONY Camera
| Sensor | Ambarella A12 SONY CMOS sensor |
| Shooting mode | Single shot mode |
| Image Size | 5120x3840 (20MP) |
| Max Video Bit | 60Mbps |
| Video Recording Resolution | 3840x2160 |
| Supported File Systems | FAT32(<=32GB) exFAT(>32GB) |
| Photo system | JPEG |
| Video system | MP4 |
| Supported SD Cards | Micro SD Max capacity: 128GB, UHS-I Speed required |
| Operating Temperature Range | 0~40℃ |
6. Lithium Battery
| Voltage | 11.4Voltage |
| Capacity | 3100 mAh |
| Energy | 35.34 Wh |
| Battery Type | Lithium 3S battery |
| Net Weight | about 196g |
| Max charging power | 35W |
| Charge time | <5h (use 5Voltage 2A adapter) |
| Charging Temperature Range | 0~40℃ |
7. Moblie Phone APP System
| Mobile APP | C-Fly 2 |
| Aerial Photography mode | dronie mode, rocket mode, circle mode, helix mode |
| Live View Quality | 720P |
| FPV Transmission Distance | 5km |
| Required Operating Systems | Andrio 5.0 above, or ISO 9.0 above |
8. Battery Charger
| Rated Power | 10W |
| Input | suggestion 5Voltage 2A |
| Output | 4.35Voltage 0.7Ax3 |
9. Remote Controller
| Date Transmission Distance | Max 5km |
| Operating Frequency | 5.8GHz |
| Operating Current/Voltage | 500mA at 3.7V |
| Transmitter Power(EIRP) | FCC: ≤23dBm; CE: ≤14dBm; SRRC: ≤20dBm |
| Battery Type | LiPo lithium battery 18650 1S |
| Battery Capacity | 2600 mAh |
| Battery Voltage | 3.7 Voltage |
| Battery Power | 9.62 Wh |
| Operating Temperature Range | 0~40℃ |
| Supported Mobile Device Size | Mobile thickness Supported: 6.5~8.5mm |
| Charge | USB charger |
| Maximum Charge Power | 5W |
| Charge Time | <3h (with 5Voltage 2A adapter) |
|
|
