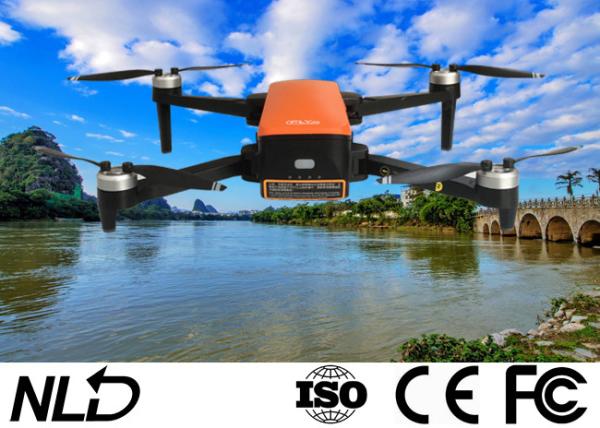

Camera Drone with Six Flight Modes, GPS, Altitude, Return to Home,
One-Key RTH, Low Battery RTH, Lose Control RTH
Flight Modes
GPS mode:
When the aircraft is on GPS mode, it can achieve accurate hover of
the aircraft. When the GPS signal is weak, the aircraft will
automatically enter altitude mode or vision poptical flow positing
mode.
Altitude Mode:
In Altitude Mode, when the optical flow positioning conditions are
satisfied, the aircraft will automatically enter the optical flow
positioning mode, in the optical flow positioning mode, the
aircraft can hover stably with the optical flow positioning system.
Return To Home (RTH)
Aircraft has Return-to-home (RTH) function, and there are 3 types
of RTH: one-key RTH, low battery RTH and lose control RTH.
One-key RTH
The aircraft can return to the return point via the"RTH" button on
the remote control
Low Battery RTH
During the flight, when the red light of the aircraft status
indicator flashes slowly, the aircraft triggers low battery RTH.
Lose Control RTH
If the remote control signal continues to be lost for more than 2
seconds, the flight control system will take over the control of
the aircraft and control the aircraft to fly back to the last
recorded return point.

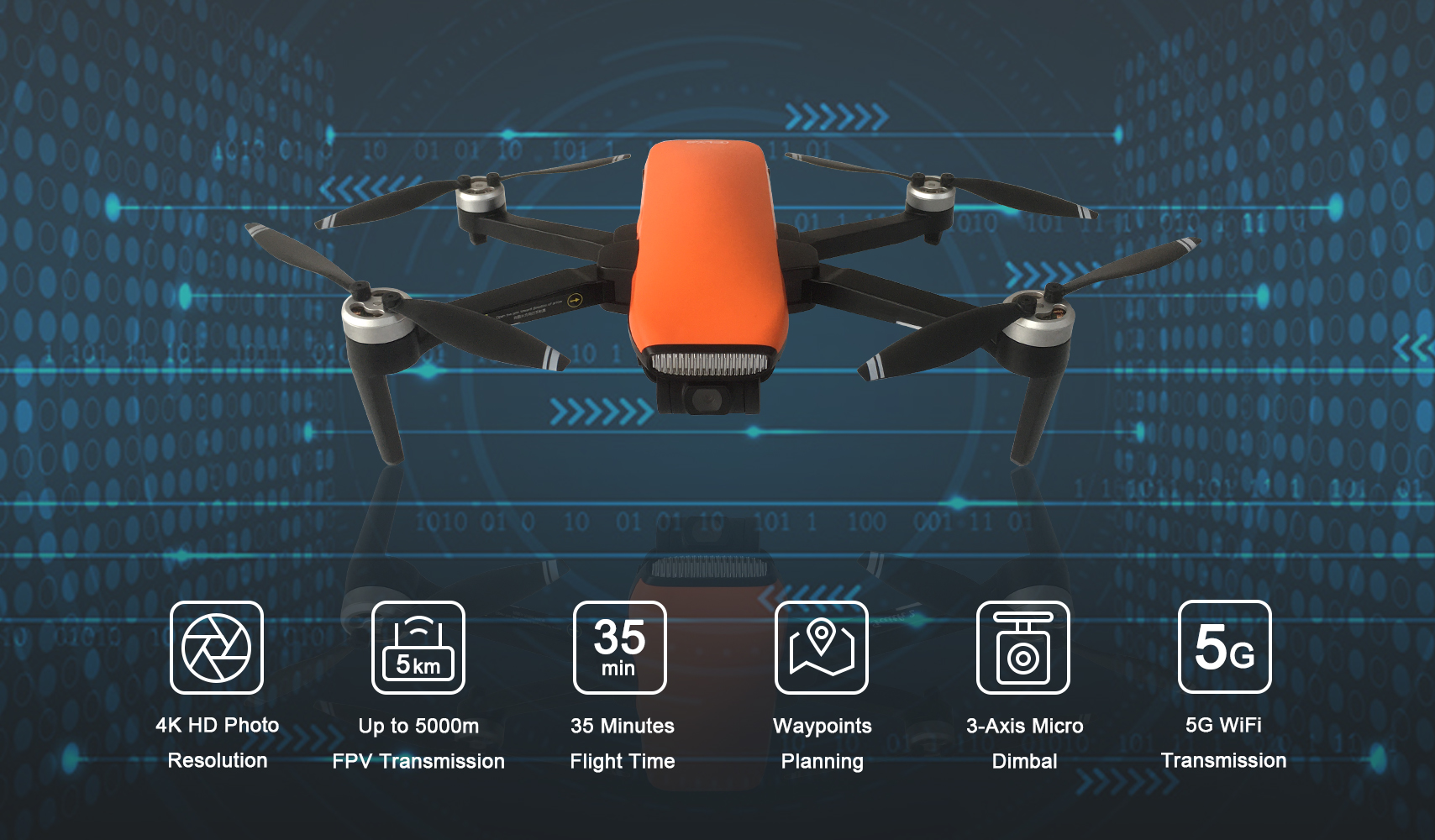

Specification
1. Aircraft
| Size(Fold) | 170*108*74mm(L*W*H) |
| Size(Unfold) | 180*255*74mm(L*W*H) |
| Wheelbase | 280mm |
| Weight | 515g |
| Max Ascent Speed | Clam mode: 2m/s |
| Max Descent Speed | Clam mode: 1.5m/s |
| Max Speed | Clam mode: 5m/s |
| Max Service Ceiling Above Sea | 5000m |
| Max Fight Time | 35mins |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system
works) |
| Maximum Flight Height | 120m(Maximum 500m(Need to change setting on app)) |
| Operating Temperature Range | 0℃-40℃ |
2. Optical flow system
| Operating Environment | Surface with clear pattern and adequate lighting(lux>15) |
| Velocity Range | ≤1.5m/s at 6.6 ft (2m) above ground |
| Altitude Range | 0.2-4.5m |
3. Ultrasonic altitude system
| Operating | Except for surface of water or ground of absorbing material(such as thick carpet) |
| Velocity Range | ≤3m/s |
| Altitude Range | 0.2-4.5m |
4. 3-axis Gimbal
| Controllable | Pitch: -90°-0° |
| Stabilization | Pitch: +30/-120° |
5. Camera
| Sensor | Ambarella A12, SONY CMOS |
| Image Size | 5120*3840(20MP) |
| Shooting mode | Single shot |
| Video Recording Resolution | 3840*2160 |
| Maximum Video Bit | 60Mbps |
| Supported File Systems | FAT32(<=32GB)/exFAT(>32GB) |
| Photo | JPEG |
| Video | MP4 |
| Supported SD Cards | Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required |
| Operating Temperature Range | 0℃-40℃ |
6. Battery
| Capacity | 3100mAh |
| Voltage | 11.4V |
| Battery Type | LiPo 3S |
| Energy | 35.34Wh |
| Net Weight | 196g |
| Max charging power | 35W |
| Charge time | <5h(with 5V 2A adapter) |
| Charging Temperature Range | 0℃-40℃ |

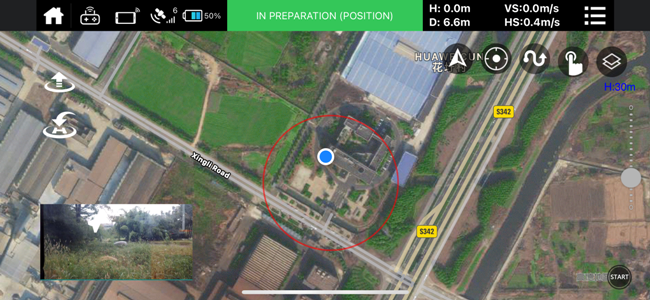

7. APP
| Mobile APP | C-Fly 2 |
| Live View Quality | 720P |
| Aerial Photography mode | dronie, rocket, circle, helix |
| Required Operating Systems | Andrio 5.0 above, ISO 9.0 above |
| FPV Transmission Distance | 5000m |
8. Charger
| Input | 5V 2A(recommend) |
| Output | 4.35V 0.7A*3 |
| Rated Power | 10W |
9. Remote Controller
| Operating Frequency | 5.8GHz |
| Max Transmission Distance | 5000m |
| Transmitter Power(EIRP) | FCC: ≤23dBm |
| Operating Current/Voltage | 500mA@3.7V |
| Capacity | 2600mAh |
| Battery Capacity(built-in) | 3.7V |
| Battery Type | LiPo 18650 1S |
| Battery Power | 9.62Wh |
| Operating Temperature Range | 0℃-40℃ |
| Supported Mobile Device Size | Thickness Supported: 6.5-8.5mm |
| Charge | USB |
| Maximum Charge Power | 5W |
| Charge Time | <3h(with 5V 2A adapter) |
|
|
