| Brand Name : | NLD |
| Model Number : | NTA-CFLY-15 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |
Camera Drone for Travel Foldable Arms Small Package Gimbal with Cover for Protection Max 128G SD Card for Storage

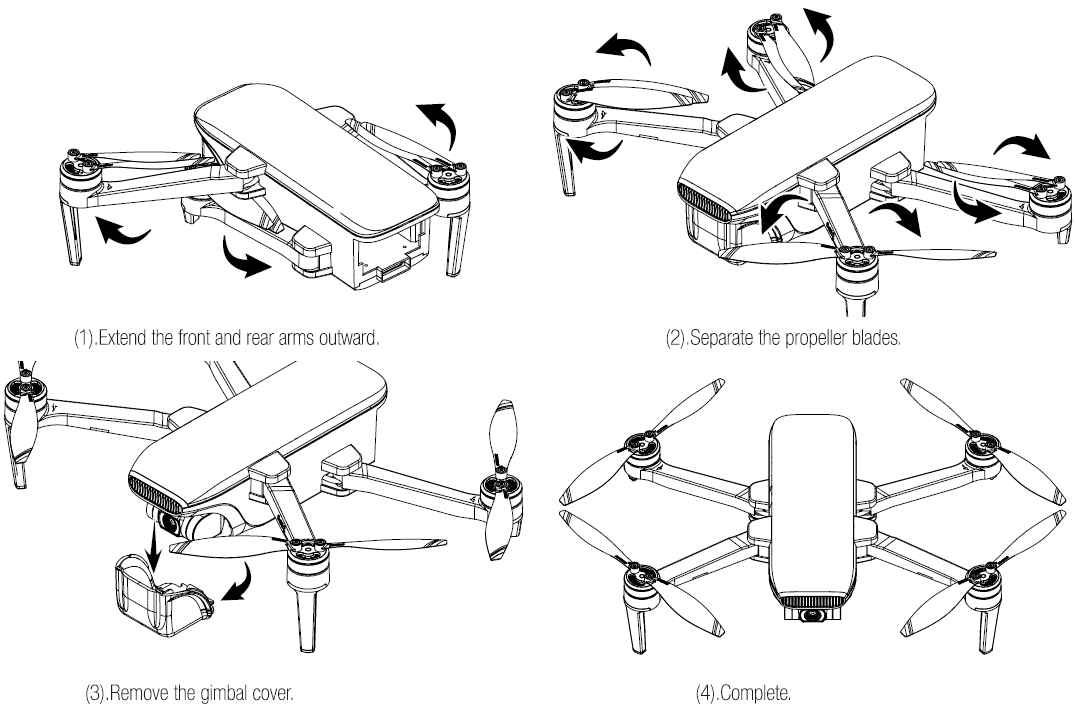

Prepare the aicraft
Unfold the aircraft, and remove the gimbal cover
(1) Extend the front and rear arms outward.
(2) Separate the propeller blades.
(3) Remove the gimbal cover.
(4) Complete
Micro SD Card
The Micro SD Card slot is located on the right side of the aircraft body
Before installing the Micro SD card, open the Micro SD card slot cover, then insert the Micro SD card into the slot, and confirm that the Micro SD card is in the right place, then close the Micro SD card slot cover.
Specification
1. Aircraft
| Size(Fold) | 170*108*74mm(L*W*H) |
| Size(Unfold) | 180*255*74mm(L*W*H) |
| Wheelbase | 280mm |
| Weight | 515g |
| Max Ascent Speed | Clam mode: 2m/s |
| Max Descent Speed | Clam mode: 1.5m/s |
| Max Speed | Clam mode: 5m/s |
| Max Service Ceiling Above Sea | 5000m |
| Max Fight Time | 35mins |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system
works) |
| Maximum Flight Height | 120m(Maximum 500m(Need to change setting on app)) |
| Operating Temperature Range | 0℃-40℃ |
2. Optical flow system
| Operating Environment | Surface with clear pattern and adequate lighting(lux>15) |
| Velocity Range | ≤1.5m/s at 6.6 ft (2m) above ground |
| Altitude Range | 0.2-4.5m |
3. Ultrasonic altitude system
| Operating | Except for surface of water or ground of absorbing material(such as thick carpet) |
| Velocity Range | ≤3m/s |
| Altitude Range | 0.2-4.5m |
4. 3-axis Gimbal
| Controllable | Pitch: -90°-0° |
| Stabilization | Pitch: +30/-120° |
5. Camera
| Sensor | Ambarella A12, SONY CMOS |
| Image Size | 5120*3840(20MP) |
| Shooting mode | Single shot |
| Video Recording Resolution | 3840*2160 |
| Maximum Video Bit | 60Mbps |
| Supported File Systems | FAT32(<=32GB)/exFAT(>32GB) |
| Photo | JPEG |
| Video | MP4 |
| Supported SD Cards | Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required |
| Operating Temperature Range | 0℃-40℃ |
6. Battery
| Capacity | 3100mAh |
| Voltage | 11.4V |
| Battery Type | LiPo 3S |
| Energy | 35.34Wh |
| Net Weight | 196g |
| Max charging power | 35W |
| Charge time | <5h(with 5V 2A adapter) |
| Charging Temperature Range | 0℃-40℃ |
7. APP
| Mobile APP | C-Fly 2 |
| Live View Quality | 720P |
| Aerial Photography mode | dronie, rocket, circle, helix |
| Required Operating Systems | Andrio 5.0 above, ISO 9.0 above |
| FPV Transmission Distance | 5000m |
8. Charger
| Input | 5V 2A(recommend) |
| Output | 4.35V 0.7A*3 |
| Rated Power | 10W |
9. Remote Controller
| Operating Frequency | 5.8GHz |
| Max Transmission Distance | 5000m |
| Transmitter Power(EIRP) | FCC: ≤23dBm |
| Operating Current/Voltage | 500mA@3.7V |
| Capacity | 2600mAh |
| Battery Capacity(built-in) | 3.7V |
| Battery Type | LiPo 18650 1S |
| Battery Power | 9.62Wh |
| Operating Temperature Range | 0℃-40℃ |
| Supported Mobile Device Size | Thickness Supported: 6.5-8.5mm |
| Charge | USB |
| Maximum Charge Power | 5W |
| Charge Time | <3h(with 5V 2A adapter) |
|
|
