NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NTA-CFLY-4 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |
Drone for Kids with Professional Sony 4K Camera 3 Axis Gimbal Brushless Motor Mechanical Stabilization
Safety Precautions
The remote control model aircraft is the most dangerous commodity, so user must stay away from the crowd when flying. Improper assembly or damage to the body, poor electronic control, And unfamiliar operations may cause unpredictable accidents such as damage to the aircraft or personal injury. Please be careful when flying To be safe, user must understand the responsibility for accidents caused by your own negligence.
Stay away from obstacles and crowd
The remote control aircraft has an uncertain flight speed and state during flight, and it is potentially dangerous. Stay away from crowds and high-rise buildings when flying At the same time, avoid flying in bad weather such as wind, rain, thunder and lighining. Debugging and installing the aircraft must strictly follow the operating instructions When flying upwards, pay attention to keeping the aircraft ata distance of 1-2 meters from the user or other pe 叩 le. Avoid the aircraft from crashing into the head, face, and body of people when flying or landing, which may cause injury
Specification
Aircraft
Size(Fold): 170*108*74mm(L*W*H)
Size(Unfold): 180*255*74mm(L*W*H)
Wheelbase: 280mm
Weight: 515g
Max Ascent Speed:
Clam mode: 2m/s
Normal mode: 2m/s
Sport mode: 5m/s
Max Descent Speed:
Clam mode: 1.5m/s
Normal mode: 1.5m/s
Sport mode: 2m/s
Max Speed:
Clam mode: 5m/s
Normal mode: 10m/s
Sport mode: 19m/s
Max Service Ceiling Above Sea: 5000m
Max Fight Time: 35mins
Satellite Positioning Systems: GPS/GLONASS
Hover Accuracy Range:
Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)
Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Maximum Flight Height: 120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range: 0℃-40℃
2. Optical flow system
| Operating Environment | Surface with clear pattern and adequate lighting(lux>15) |
| Velocity Range | ≤1.5m/s at 6.6 ft (2m) above ground |
| Altitude Range | 0.2-4.5m |
3. Ultrasonic altitude system
| Operating | Except for surface of water or ground of absorbing material(such as thick carpet) |
| Velocity Range | ≤3m/s |
| Altitude Range | 0.2-4.5m |
4. 3-axis Gimbal
| Controllable | Pitch: -90°-0° |
| Stabilization | Pitch: +30/-120° Roll: ±35° Yaw: ±30° |
5. Camera
| Sensor | Ambarella A12, SONY CMOS |
| Image Size | 5120*3840(20MP) |
| Shooting mode | Single shot |
| Video Recording Resolution | 3840*2160 |
| Maximum Video Bit | 60Mbps |
| Supported File Systems | FAT32(<=32GB)/exFAT(>32GB) |
| Photo | JPEG |
| Video | MP4 |
| Supported SD Cards | Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required |
| Operating Temperature Range | 0℃-40℃ |
6. Battery
| Capacity | 3100mAh |
| Voltage | 11.4V |
| Battery Type | LiPo 3S |
| Energy | 35.34Wh |
| Net Weight | 196g |
| Max charging power | 35W |
| Charge time | <5h(with 5V 2A adapter) |
| Charging Temperature Range | 0℃-40℃ |

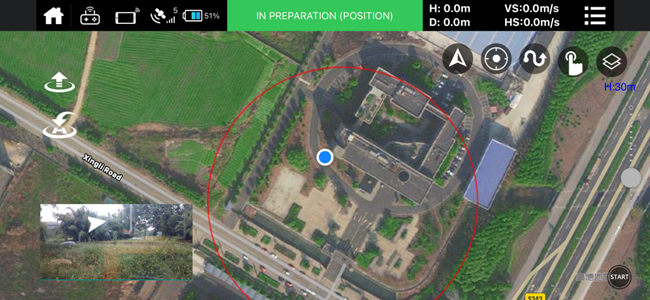

7. APP
| Mobile APP | C-Fly 2 |
| Live View Quality | 720P |
| Aerial Photography mode | dronie, rocket, circle, helix |
| Required Operating Systems | Andrio 5.0 above, ISO 9.0 above |
| FPV Transmission Distance | 5000m |
8. Charger
| Input | 5V 2A(recommend) |
| Output | 4.35V 0.7A*3 |
| Rated Power | 10W |
9. Remote Controller
| Operating Frequency | 5.8GHz |
| Max Transmission Distance | 5000m |
| Transmitter Power(EIRP) | FCC: ≤23dBm CE: ≤14dBm SRRC: ≤20dBm |
| Operating Current/Voltage | 500mA@3.7V |
| Capacity | 2600mAh |
| Battery Capacity(built-in) | 3.7V |
| Battery Type | LiPo 18650 1S |
| Battery Power | 9.62Wh |
| Operating Temperature Range | 0℃-40℃ |
| Supported Mobile Device Size | Thickness Supported: 6.5-8.5mm |
| Charge | USB |
| Maximum Charge Power | 5W |
| Charge Time | <3h(with 5V 2A adapter) |
|
|
