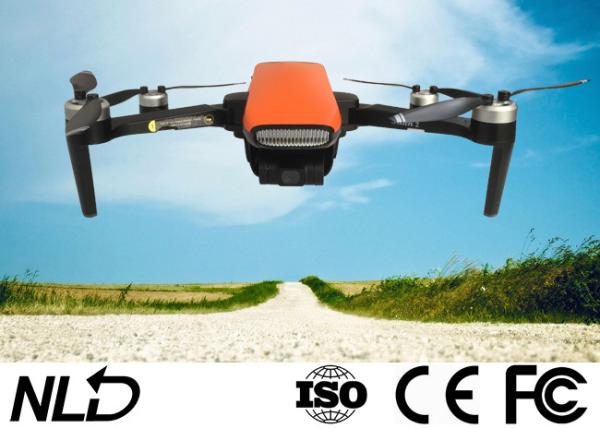

Camera Drone with 4K Sony Camera GPS GLONASS Dual Module Ensure Smooth and Precise Flight

Important Statement

• This product is not a toy, but a precision device that integrates professional knowledge such as mechanics, electronics, aerodynamics, and high-frequency emission .Accidents can be avoided by correct assembly and debugging. The owner of the product must use a safe way to operate and control; improper operation may cause serious personal injury or property damage.
• This product is suitable for people who have experience in operating model aircraft and are at least 14 years old.
• If user encounter problems with use, operation, maintenance, etc., please contact local dealer or relevant personnel of our company. Our company and the seller are No responsibility for any loss and damage caused by improper work and personal injury,
• This product contains small parts, please keep it out of the reach of children to avoid the risk of ingestion or suffocation.

Specification

1. Aircraft

Optical flow system

Operating Environment: Surface with clear pattern and adequate lighting(lux>15)

Velocity Range: ≤1.5m/s at 6.6 ft (2m) above ground

Altitude Range: 0.2-4.5m

Ultrasonic altitude system

Operating: Except for surface of water or ground of absorbing material(such as thick carpet)

Velocity Range: ≤3m/s

Altitude Range: 0.2-4.5m

3-axis gimbal

Controllable: Pitch: -90°-0°

Stabilization:

Pitch: +30/-120°

Roll: ±35°

Yaw: ±30°

Camera

Sensor: Ambarella A12, SONY CMOS

Image Size: 5120*3840(20MP)

Shooting mode: Single shot

Video Recording Resolution: 3840*2160

Maximum Video Bit: 60Mbps

Supported File Systems: FAT32(<=32GB)/exFAT(>32GB)

Photo: JPEG

Video: MP4

Supported SD Cards: Micro SD^TM Max capacity: 128GB, UHS-I Speed Grade 3 rating required

Operating Temperature Range: 0℃-40℃

Battery

Capacity: 3100mAh

Voltage: 11.4V

Battery Type: LiPo 3S

Energy: 35.34Wh

Net Weight: 196g

Max charging power: 35W

Charge time: <5h(with 5V 2A adapter)

Charging Temperature Range: 0℃-40℃

APP

Mobile APP: C-Fly 2

Live View Quality: 720P

Aerial Photography mode: dronie, rocket, circle, helix

Required Operating Systems: Andrio 5.0 above, ISO 9.0 above

FPV Transmission Distance: 5000m

Charger

Input: 5V 2A(recommend)

Output: 4.35V 0.7A*3

Rated Power: 10W

Remote Controller

Operating Frequency: 5.8GHz

Max Transmission Distance: 5000m

Transmitter Power(EIRP):

FCC: ≤23dBm

CE: ≤14dBm

SRRC: ≤20dBm

Operating Current/Voltage: 500mA@3.7V

Capacity: 2600mAh

Battery Capacity(built-in): 3.7V

Battery Type: LiPo 18650 1S

Battery Power: 9.62Wh

Operating Temperature Range: 0℃-40℃

Supported Mobile Device Size: Thickness Supported: 6.5-8.5mm

Charge: USB

Maximum Charge Power: 5W

Charge Time: <3h(with 5V 2A adapter)
