NEWLANDLE TECHNOLOGY CO.,LTD Professional Industrial Grade Drone Supplier
5 Years
| Ask Lasest Price | |
| Brand Name : | NLD |
| Model Number : | NIA-Z10TIR-3 |
| Certification : | ISO9001 CE FCC |
| Price : | Negotible |
| Payment Terms : | L/C, T/T, D/P, D/A |
| Supply Ability : | 100sets/month |
| Delivery Time : | 20days |

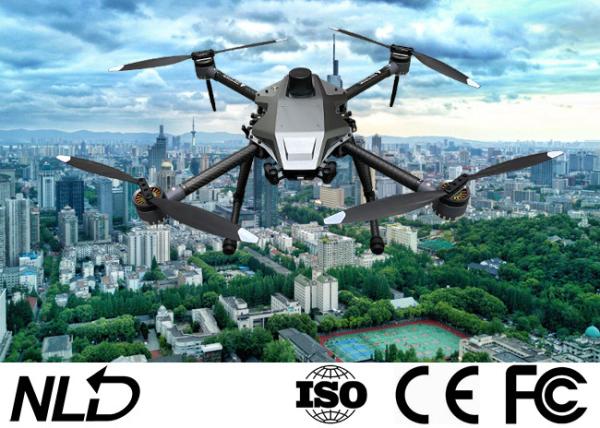

Transmission Line Inspection Drone Thermal Infrared Camera with 1080P Visiable Light Camera 1/3" Panasonic CMOS
Thermal imager specification
| Lens size | 25mm | Horizontal FOV | 24.6° |
| Vertical FOV | 18.5° | Diagonal FOV | 30.4° |
| Detective Distance (Man: 1.8x0.5m) | 735 meters | Recognize Distance (Man: 1.8x0.5m) | 184 meters |
| Verified Distance (Man: 1.8x0.5m) | 92 meters | Detective Distance (Car: 4.2x1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2x1.8m) | 564 meters | Verified Distance (Car: 4.2x1.8m) | 282 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager | Detector pixel | 640*480 (standard version) |
| Pixel size | 17μm | For optional | 384*288 (low configuration) |
| Focusing method | Athermal prime lens | Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) | MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio | Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) | Digital zoom | 1x ~ 4x |
| Sync correct time | Yes | Temperature warning | 0℃~120℃ (For thermometry version only) |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) | ||
Configuration
| Drone Frame | 4-rotor drone frame | 1 |
| Flight control | PX4 | 1 |
| Remote controller | Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input | 1 |
| Li-battery | Super Lip Battery 12000mah | 1 |
| Propeller | 2sets each set 4pcs | 8 |
| Charger | Smart charger | 1 |
| Tools | 1 | |
| Aluminum box | 1 |
Thermal object tracking
| Update rate of deviation pixel | 50Hz | Output delay of deviation pixel | <5ms |
| Minimum object size | 32*32 pixel | Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame | Object memory time | 100 frames (4s) |
RGB camera object tracking
| Update rate of deviation pixel | 50Hz | Output delay of deviation pixel | <5ms |
| Minimum object contrast | 5% | SNR | 4 |
| Minimum object size | 32*32 pixel | Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame | Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel | ||
Introduction
| NIA-Z10TIR quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields. | |||
| Aircraft size | 460x460x250mm | Long battery life | Max 60min |
| Weight | 2.4kgs | Payload | 1.5kgs |
| Max takeoff weight | 4kgs | FPV camera | 1080P |
| Work temperature | -10~50℃ | Max wind speed | 15m/s |
|
|
