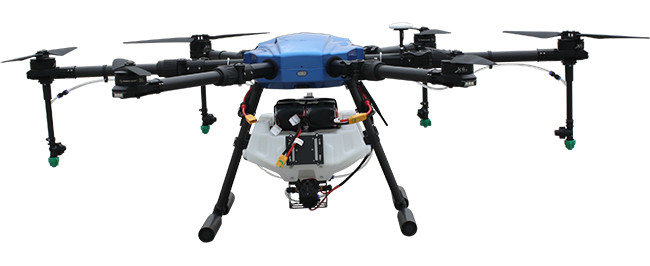

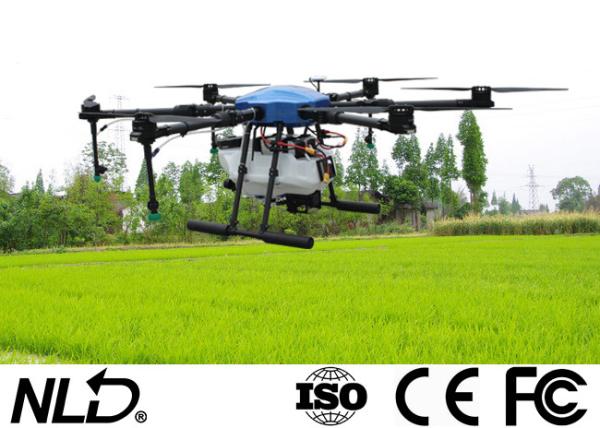

    FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery

    Ask Lasest Price
    Brand Name : NLD
    Model Number : NLA-610
    Certification : ISO9001 CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 100sets/month.
    Delivery Time : 15~25 days
    • Product Details
    • Company Profile

    FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery

    FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery】


    ModelNLA610NLA616NLA622NLA630NLA650
    Rotor66668

    Hovering accuracy

    horizontal

    +/- 1.5m+/- 1.5m+/- 1.5m+/- 1.5m+/- 1.5m

    Hovering accuracy

    vertical

    +/- 0.5m+/- 0.5m+/- 0.5m+/- 0.5m+/- 0.5m
    Wind resistance4~54~54~54~54~5
    Motor6*180KV6*100KV
    Electronic Speed Control80A80A
    Motor applicable temperature-20~50-20~50-20~50-20~50-20~50
    Foldable propeller23883090
    Pesticide Tank10L16L22L30L50L
    Take-off Capacity30kg42kg
    Flying Time (with payload)15~20min15~20min15~20min15~20min15~20min
    Flying distance5000m5000m5000m5000m5000m
    Working distance2000m2000m2000m2000m2000m
    Flying Speed0~10m/s0~10m/s0~10m/s0~10m/s0~10m/s
    Spray Width3.5~4m3.5~4m3.5~4m3.5~4.5m3.5~5m
    Spray Flow1.2~2L/min1.2~2L/min1.5~2.5L/min1.5~2.5L/min1.5~3L/min
    Spray Efficiency1500~2400sqm/min1500~2400sqm/min
    Expand Size1992*1992*562mm2428*2428*600mm
    Wheelbase1407mm1648mm
    Folded Size945*848*562mm1102*979*600mm
    Battery / Quantity6S/16000mAh / 2pcs6S 22000mAh / 2pcs6S 22000mAh / 2pcs6S 30000mAh / 2pcs12S 27000mAh / 2pcs
    FPV CameraOptionalOptionalOptionalOptionalOptional
    Obstacle avoidance radarOptionalOptionalOptionalOptionalOptional
    Terrain following radarOptionalOptionalOptionalOptionalOptional
    RTK centimeter positioningOptionalOptionalOptionalOptionalOptional

    FCC ISO Agriculture Plant Protection Spraying Drone With 22000mAh Battery


    Integrated power system

    • The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
    • Intelligent multiple redundancy protection, running data real-time output
    • High lift, high efficiency propeller
    • Sturdy, reliable and impact resistant
    • Highlight the LED display
    • Super protection, easy to deal with the harsh environment of plant protection
    • Modular design, easy maintenance
    • support system upgrade

    APP Ground Workstation

    • Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
    • Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
    • Query job record, flight time, spray width, dose etc.
